Specialty inkjet printing for narrow width media

The Addmaster KR25C leverages HP inkjet technologies to deliver a proven, cost effective color printing mechanism that enables you to develop printing solutions for narrow width media. You can use this printer mechanism to develop a compact color label printer or a color receipt printer that can print alpha numerics, graphics and barcodes. It is easy to use and maintain. We designed its hardware, firmware and software so that you can easily integrate it into your printing solution. The KR25C is designed with a 2.5" print zone, which is ideal for compact specialized printing of color receipts, tags and labels. With the integrated auto cutter, you can print on a roll or on cut sheet media.

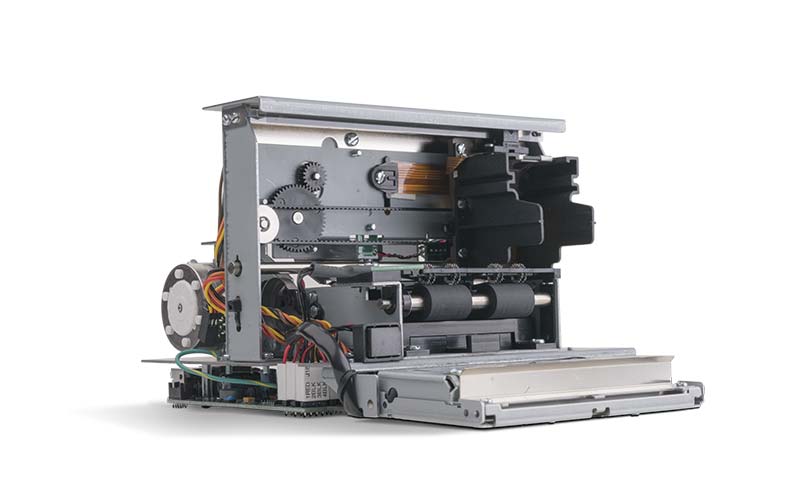

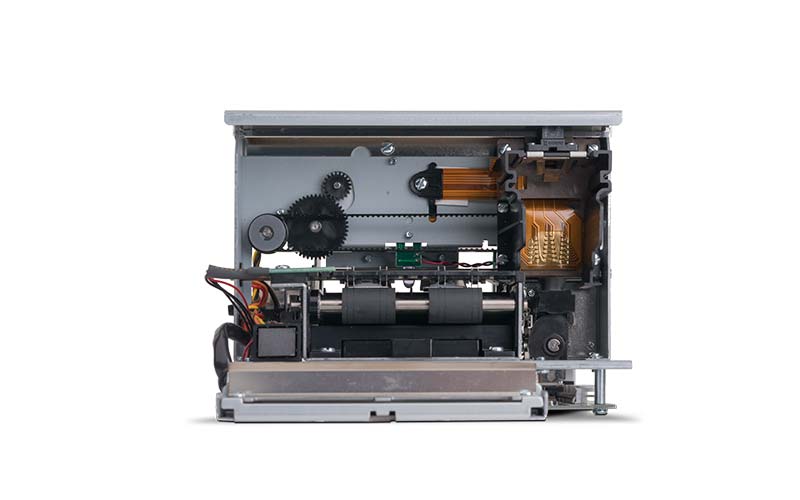

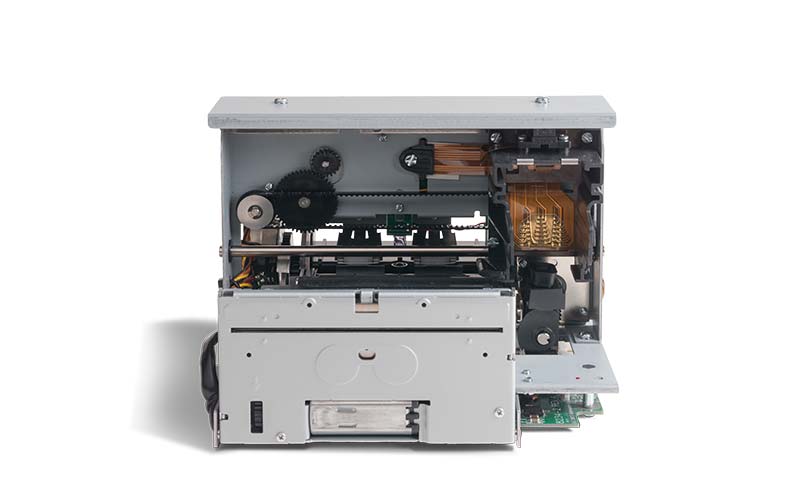

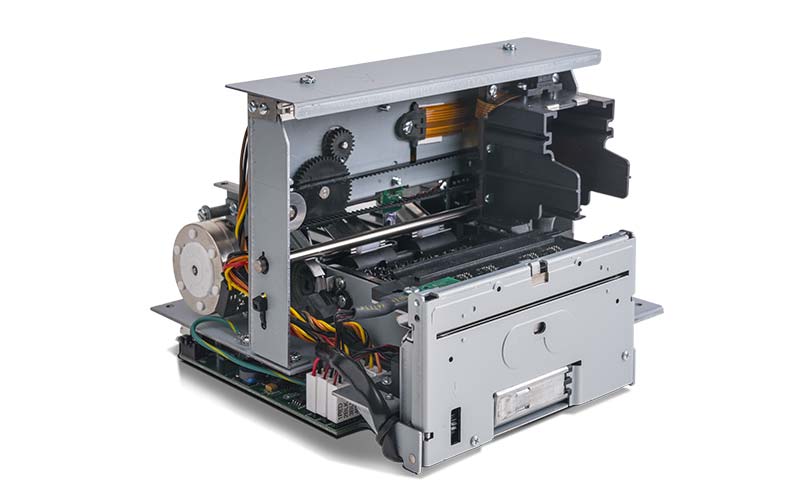

KR25C Color Print Mechanism

  • A single tri-color cartridge stall
  • Cartridge service station
  • Media path with motor driven means
  • Mechanical support for integration
  • Electronics for control and communication
  • Firmware for operation
  • Auto-cutter

  • A single tri-color cartridge stall
  • Cartridge service station
  • Media path with motor driven means
  • Mechanical support for integration
  • Electronics for control and communication
  • Firmware for operation
  • Auto-cutter

  • A single tri-color cartridge stall
  • Cartridge service station
  • Media path with motor driven means
  • Mechanical support for integration
  • Electronics for control and communication
  • Firmware for operation
  • Auto-cutter

  • A single tri-color cartridge stall
  • Cartridge service station
  • Media path with motor driven means
  • Mechanical support for integration
  • Electronics for control and communication
  • Firmware for operation
  • Auto-cutter

KR25C Color Print Mechanism Specifications

Technical Specifications
Print Method HP thermal inkjet
Ink Cartridges Part #96082
Ink Type Cyan, magenta and yellow dye based aqueous ink
Native Resolution 1200 dpi
Nozzle Count 300
Print Swath 0.33"
Max. Firing Frequency 18 kHz
Ave. Drop Volume 5 pl
Ave. Delivered Ink 17 cc
Print Cartridge Yield 391 pages @ 15% a/c
Recommended Operating Conditions 15º to 35º C, 20% to 80% RH
Connectivity USB
Power Source 24V DC input
Product Metrics
Overall Dimensions Width 6.0" × Depth 6.0" × Height 4.5"
Weight 2.75 lb
Print Cartridge Dimensions 48.1mm × 31.0mm × 46.1mm
Media
Paper Roll Width 2.75"
Cut Sheet Width 2.75"
