The space-saving solution for validation of bank forms at the teller window

The V-Series validation printer is designed to validate various bank forms used at the teller window, including transaction details on deposit slips, cash-in tickets, cash-out tickets, checks and cut-form receipts. The only bank validator with an integrated form rack that saves space and increases teller efficiency, the V-Series is available for the IJ7100 and IJ7200 printers. Compatible with most popular core banking software, banks will gain fast, accurate and imageable form validation. The V-Series also features a wide-open full-length validation slot, automatic form positioning, and enhanced print quality.

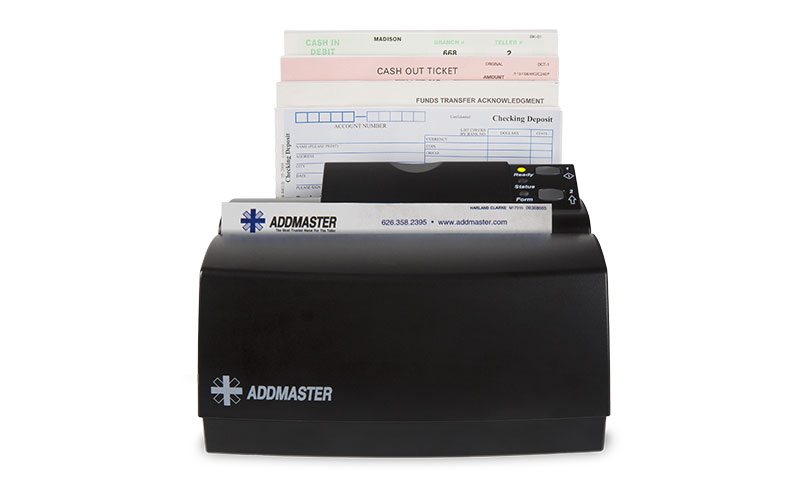

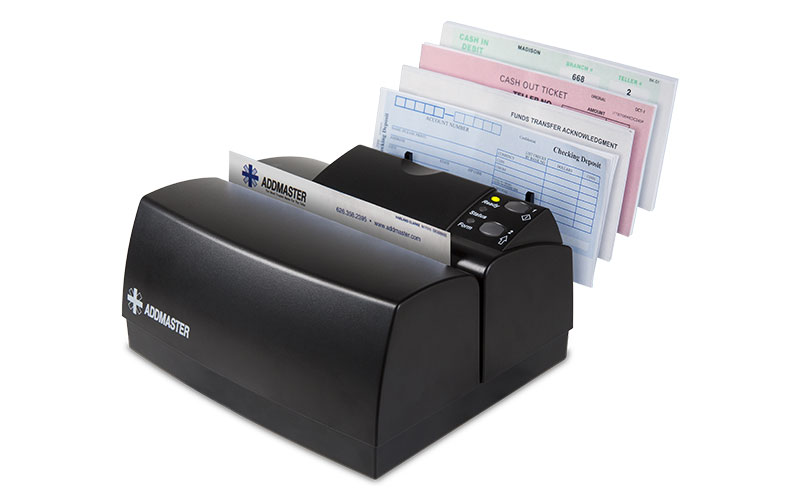

V-Series Bank Teller Validation Printer

  • Ergonomic design
  • 7" × 6.25" footprint
  • USB and RS232 interface
  • Form rack with 5 slots
  • Holds up to 400 forms
  • Automatic form alignment

  • Ergonomic design
  • 7" × 6.25" footprint
  • USB and RS232 interface
  • Form rack with 5 slots
  • Holds up to 400 forms
  • Automatic form alignment

IJ7 V-Series Specifications

Technical Specifications
Print Method Thermal inkjet
Ink Cartridges Part #97091 (IJ7200-1V, IJ7200-2V, IJ7202-1V, IJ7202-2V)
Part #HP 6602A (IJ7100-1V, IJ7100-2V, IJ7102-1V, IJ7102-2V)
Print Speed 8 lines per second at 42 characters/line
14 lines per second at 10 characters/line
Microprocessor ARM 7
Code Emulations Epson, IBM, DH, others by request
Connectivity 1 USB 2.0 and 1 Serial RS232 ports
Wireless IP addressable
USB interface cable (IJ7100-2V, IJ7102-2V, IJ7200-2V, IJ7202-2V)
RS232 interface cable (IJ7100-1V, IJ7102-1V, IJ7200-1V, IJ7202-1V)
Serial Baud Rate 9600 or 38400 (dip switch selectable)
Power Source 24 VDC, 1A external power supply
Product Metrics
Overall Dimensions Width 7.0" × Depth 6.2" × Height 3.6"
Weight 2.9 lb (1.3 kg)
Shipping Weight 4.4 lb (2.0 kg)
Options
Automatic form positioning (IJ7102-1V, IJ7102-2V, IJ7202-1V, IJ7202-2V)
Media
Form Size Minimum width 5.5"
Maximum width unlimited
Form Print Zone IJ7200: Width 2.75", top line at 1.1" from form bottom (prints 5 lines above MICR line, 6 lines if no MICR)
IJ7100: Width 2.75", top line at 1.54" from form bottom (prints 6 lines above MICR line, 8 lines if no MICR)
